SMT Spring Contact 3mm Gold Plated Grounding Contact

SMT Spring Contact 3mm Gold Plated Grounding Contact - Image 2

SMT Spring Contact 3mm Gold Plated Grounding Contact - Image 3

SMT Spring Contact 3mm Gold Plated Grounding Contact - Image 4

SMT Spring Contact 3mm Gold Plated Grounding Contact

The third-gen battery shrapnel comes with a clever split design: a main base and a riveted negative spring. This smart setup cuts costs, boosts elasticity, and amps up pull-off resistance.

Material Rundown:
1. Cold-Rolled Steel: Budget-friendly, good bounce, neat look, easy battery swaps,and handles big currents like a pro.
2. Spring Steel*: Top-notch elasticity and style but comes with a bigger price tag.
3. Cold Plate (Iron): Cheap and cheerful for everyday use.
4. Manganese Steel: Heat-treated for elasticity, stainless vibes without the hefty cost.
5. Phosphor Bronze: Rust-proof, low resistance, easy to weld—pricey but worth it.
6. Brass: Perfect for damp spots but will dent your budget.
7. Stainless Steel: Elastic and durable but welding? Not its thing.
8. Beryllium Copper: High elasticity and endurance but premium-priced.

Choosing Made Easy:
1. Environment: Got humidity, Go brass. Normal, Cold plate nickel-plated gets the job done.
2. Cost: Cold plate nickel-plated wins for savings; phosphor bronze and beryllium copper, not so much.

Category: Battery Components

Description
Reviews (0)

1）SMT Spring Contact 3mm High Antenna Contact Gold Plated Grounding Contact
Material 0.15mm Stainless Steel
Finish/Plating Gold Plate
Mounting SMT
Height above PCB 3mm
Packaging Bulk/Tape Reel
Certificates RoHS, REACH

More Others:
2）Stainless Steel Nickel Plated CR2450 CR2477 Battery Terminal SMT Negative Battery Contact
Product Name Negative Battery Contact
Material 0.25mm Stainless Steel
Finish/Plating Nickel Plate
Mounting SMT
Cell Size Dia. 23mm-30mm Cells
Packaging Bulk/Tape Reel
Certificate RoHS, REACH

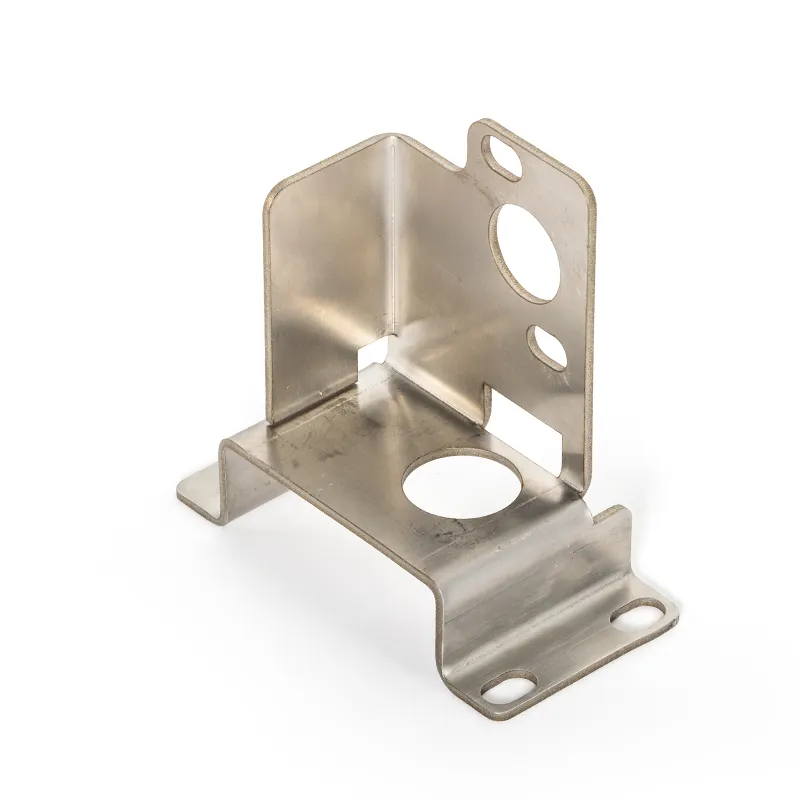

3）High Precious OEM Aluminum Bending Parts Steel Sheet Metal Stamping Parts
Material: Stainless Steel, Aluminum, Brass, Phosphor Bronze, Spring Steel. etc.
Finish: Nickel Plate, Tin Plate , Zinc Plate, Gold Plate, etc.
Process: Laser Cutting, Bending, Welding, Stamping, Deep Drawing, Precision Machining, CNC Milling, CNC Lathe Turning, Tapping, Drilling, Grinding, Wie EDM, CNC Punching, Die Casting, etc
Drawing: 2D: DWG,DXF, PDF3D: ASM, DRW, DWG, DXF, IGS,STEP, so on
OEM/ODM: Welcome

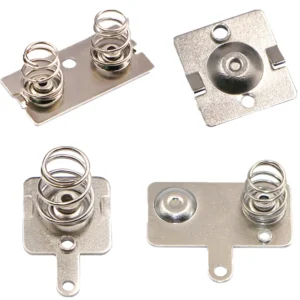

4)Metal Stamping 2 Cell AAA Battery Contact Dual AAA, A23 Battery Contact Spring (Left) Keystone 5214 Alternative
Material 0.50mm Steel
Spring Material Dia. 0.50mm Music Wire
Finish/Plating Nickel Plate
Mounting Case
Number of Cell 2
Cell Size AAA, AAAA, N, A23, A27
